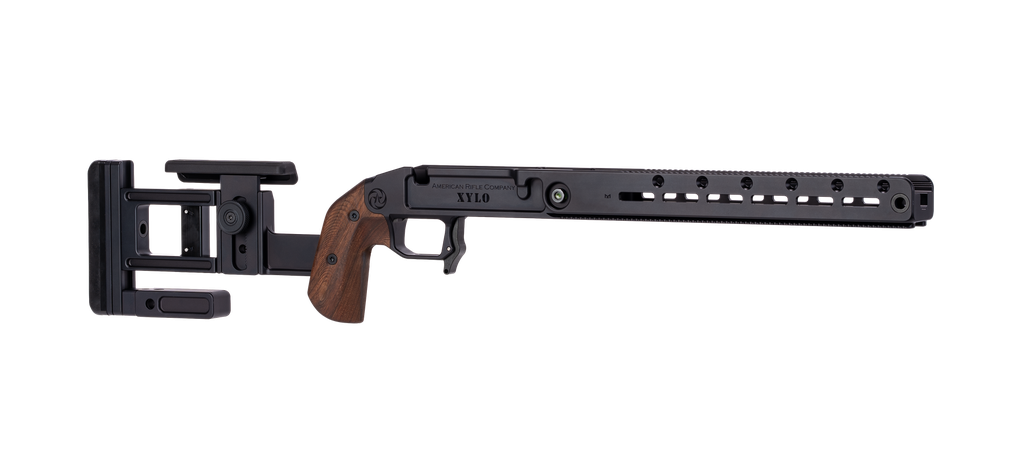

XYLO CHASSIS
Extremely stable and strong with intuitive adjustability.
GENERAL INFO
- Machined from a single piece of 7075 aluminum for exceptional strength
- Short action chassis weighs 4.6 pounds
- Long action chassis weighs 4.7 pounds
- Aluminum bag rider is included
COMPATIBILITY
- All American Rifle Company actions
- Remington M700 actions and clones
- Short action chassis designed for AICS magazines - will fit AW mags, but may require modification of latch (does not apply to Coup De Grâce action, please read CDG page for compatibility details)
- Long action chassis designed for 3.850" (CIP) length magazines
- Relief cut for actions with trigger hangers
- Clearance for up to 1.25" diameter straight barrel
Please Read:
The Xylo chassis comes standard with a lug clamp for 0.185" thick recoil lugs (fits all ARC actions). Clamps for 0.250" and 0.313" lugs are available for swap on request or can be purchased separately. The Xylo can also be used without the clamp.
0.250" clamp : Click Here
0.313" clamp: Click Here
FEATURES
Integrated Level
- Deploys to right or left
- Stows in center position
- Designed to be further from your eyes to ease eye strain when focusing on the level
-
Can be seen by most people over 40!
Cheek Piece Elevator and Adjustment
- Rack and pinion adjustment with lock nut to eliminate all play when tightened
- Cheek piece fore/aft, left/right, and yaw adjustment
- Height adjusting gear is an involute profile, just like real gears
LOP Adjustment
- Slide rods are 3/8" diameter titanium
- 2" of quick adjust plus 1" of adjustment with T25 wrench
- LOP range is 325 - 400mm (12.75 - 15.75 in)
Grip
- Walnut grip that works with your hand (you’ll understand when you feel it)
- Dipped in mineral oil for a natural wood finish that is water resistant
Fore-end
- Integrally machined Anschutz rail and Arca-Swiss with Area 419 ArcaLock
- M-LOK slots along both sides
- Countersunk holes and serrations for robust and repeatable optical mounting hardware
- Accessory holes drilled within Anschutz rail for your imagination
Magazine well
- Flared magazine well for easy reloading
- Magazine latch bump supports rear of magazine to prevent magazine from rotating up towards the bolt
- Low profile fore end makes mag changes easy when close to the
ground
ADDITIONAL INFO
- Maximum weight is about 10.4 pounds with full weight kit
- Fore end of long action chassis will fit two sets of internal weights and two sets of external weights
- Fore end of short action chassis will fit three sets of internal weights and three sets of external weights
- Chassis includes four hardened stainless steel sling swivel cup inserts with additional sling swivel cups in bag rider
- Butt plate can be adjusted for vertical position and rifle cant (roll)
Product drawing and torque specifications: Click Here
Grip interface CAD geometry (Parasolid file. Inside surface of right half of grip. After file downloads, add file extension of *.x_t): Click Here
Example of products manufactured by other companies for attaching bipods and other accessories to Arca and Anschutz rails. Other Actions customers have tested for fit: Click Here
ACCESSORIES
Linked below. May be shown in some images, sold separately.
